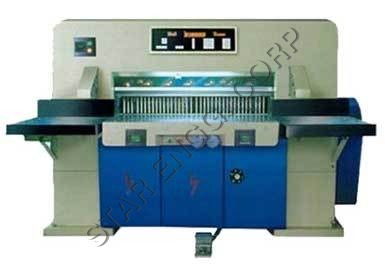

Programmable Paper Cutting Machine - Paper Cutter

Programmable Paper Cutting Machine - Paper Cutter
Programmable Paper Cutting Machine - Paper Cutter
Product Code : 41
Product Description

.

PRICE LIST APRIL 2015

Programmable Paper Cutting Machine Size 45 inch Ex Works Amritsar. Rate Rs 5,65,000.00

Programmable Paper Cutting Machine Size 36 inch Ex Works Amritsar. Rate Rs 5,25,000.00

Delivery 30 Days.

   The machine is employed for the accurate cutting of  materials such as paper, card board, chip board, plastic foils etc  The High Speed STAR Make 115 EMC , Programmable Automatic Paper Cutting Machine is specifically Designed to cut Paper, Corrugated board, Plastics, Aluminum, PVC Film, Wood Veneers, Asbestos board, Emery Cloth, Rubber and Leather as well as other Sheet Material that is to be cut with precision and speed. Robust construction to withstand rugged handling and to ensure smooth operation.

1.      Programme -The Storage capacity of the programme is 99 programmes and one programme capacity is 99 cuts in this machine. The accuracy of the programme is 0.01 mm 0.001 inch. Conversion from mm to inch fraction is also possible.

2.     Label Mode- Single Cut and Multi Cut.

3.      Back Gauge Accuracy Control-Back Gauge Accuracy Control through grinded guide system.

4.     Frame Tables and knife holder of graded cast iron.

5.     High Grade Material to withstand wear, strain and stress.

6.     Adjustable Variable Clamping pressure 300 to 4500 kg.

7.     Drive Gear Box  The worm gear drive has ground worm, need less power than any other conventional drive. The gears are running in oil bath.

8.     Latest hydraulic power packed unit. Double pressure cylinder.

9.     Precision cutting

10.  Extended side tables for stockings.

   11.  Air Cushion Table -Helps to move the paper stack very easily.

12.  Hydraulic Clamp - The special features of this machine are double clamping pressure and gentle setting of the

       clamp on the paper to be cut. Hydraulic clamp pressure can infinitely be adjusted to accommodate any type of

       material.

13. Photo Electric Safety Guard A set of infra red light beams are projected in front of the cutting zone just above the table to avoid an accident. It gives full protection to the operator.

14. Centrally located greasing points for the total machine. Operation with easy maintenance. Omitting of greasing points can no longer occur.



   Specification:-

Cutting Thickness

5"

Cutting Width

115 cm / 45 ¼ "

Cutting Length Without Comb

49"

Front Table Length

27"

Total Machine Length

90"

Total Machine Width

102"

Total Machine Height

59"

Table Height

900 mm

Wooden Box  Packed Machine Length

103 "

Wooden Box  Packed Machine Width

121 "

Wooden Box  Packed Machine Height

72 "

Total Electrical Supply

7 HP

Main Motor

5  HP

Clamp System

Hydraulic

Back Gauge Motor

1HP

Air Table Motor

1HP

Net Weight  Without Packing  of Machine

4.2 Ton

Back Gauge Accuracy

.01 mm/.001 inch

Minimum Cut

17 mm

Speed of Cut / Minute

42

Blade Thickness

12.5 mm

Air Table Equipped

Yes

Number of Programme

99

Number of Cut in each Programme

99

Measuring System

Alternate in mm, cm & inch

Depth of rear table

115 cm

Clamp opening with plate

4 ¾”

Clamp opening without plate

5"

Blade Size

54" x 5" x 1/2"

Clamp pressure, variable adjustable

300 kg- 4500 kg

Fuse for mains supply

Yes

Power Clamp operation

Hydraulic

Back Gauge Operation

Automatic

Gross Weight With Packing

4.7 Ton
